Hyperbaric oxygen therapy

Hyperbaric oxygen therapy (HBOT) is used to treat a variety of conditions including decompression sickness, non-healing wounds, diabetic foot ulcers, burns, and compromised skin grafts. HBOT is based on the principle that heightened atmospheric pressure combined with breathing pure oxygen triggers the body’s mechanisms for healing and tissue restoration.

hyperbaric oxygen-therapy HBOT

Applications of hyperbaric oxygen therapy

The FDA has cleared hyperbaric chambers for 13 medical uses, referred to as on-label conditions. HBOT is, however, being used to treat an ever-growing range of conditions like TBI and PTSD, it has been adopted by elite athletes for performance training and the beauty industry as an anti-aging treatment. Such use is termed off-label (not usually covered) or compassionate use of HBOT. Some of the on-label applications include:

Decompression Sickness
Diabetic Foot
Carbon Monoxoid Poisoning
Compromised Skin Graft
Burns
radiation icon
virus icon

Hyperbaric oxygen therapy in practice

Patients sit or lie down in a sealed pressure chamber and breathe pure oxygen, which is either pumped into the chamber or fed to the patient via a mask. The pressure in the chamber is increased (up to at least 2 atmospheres), which should raise levels of oxygen in the patient’s lungs, delivering more oxygen in the microcirculation, and in turn more oxygen to tissue — which can be measured with TcpO2.

Assessing the effectiveness of hyperbaric oxygen therapy

Because it measures the amount of oxygen diffused through the skin, transcutaneous oxygen pressure (TcpO2) can provide useful insights into the effectiveness of hyperbaric oxygen therapy. TcpO2 measurements can be taken before, during, and after HBOT.

Background image

Assessing patient eligibility for HBOT— wound healing

People with underlying health conditions, such as severe cardiovascular disease, uncontrolled diabetes, or advanced age, may have impaired tissue healing mechanisms that limit their response to HBOT. Performing a TcpO2 baseline measurement and comparing that with TcpO2 oxygen challenge levels can help physicians assess how likely a patient will respond to HBOT.

Mono- and multi-place hyperbaric chambers

Hyperbaric oxygen chambers are either single-person cylindrical chambers — monoplace — or larger structures where several people can be treated simultaneously — multiplace. TcpO2 can be used in both scenarios. Typically, the TcpO2 device is placed outside the chamber with the sensors on the patient connected to the machine via a panel or built-in socket.

Background image

Related products

We offer a range of products and accessories for carrying out TcpO2 measurements in conjunction with hyperbaric oxygen therapy. Our TcpO2 system is mounted on a cart to facilitate maneuverability between exam rooms and HBOT chambers and comes with an optional package for DICOM/HL7 connectivity.

For multiplace chambers, we offer remote panels mounted inside the chamber and provide connectivity between the electrodes on the patient and the measurement device (outside the chamber).

Group 344

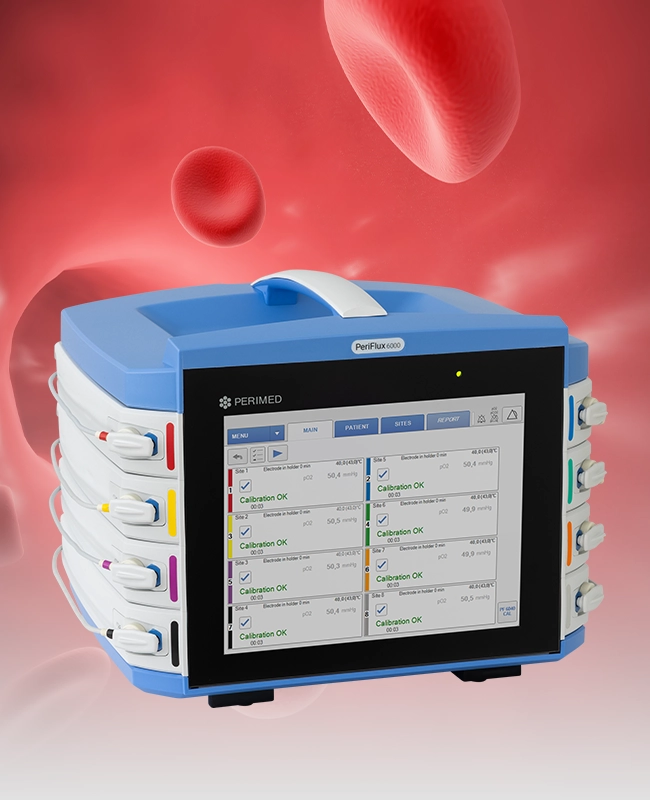

PeriFlux 6000 TcpO2 System

Our comprehensive TcpO2 system comes on a cart for convenient placement, transportation, and maneuverability.

  • Supports up to eight TcpO2 channels.
  • Enables both bilateral and multilevel measurements in a single session.
  • Delivers all measurements in an automatically generated patient report.
  • Optional DICOM/HL7 connectivity.
  • Can be upgraded to support pressure-based microcirculation measurements, such as skin perfusion pressure (SPP), segmental pressure, ABI, and TBI.
  • Includes features for HIPAA compliance.
remote panels periflux 6000

Remote panels kit for multiplace chambers

To measure how a person responds to HBOT during treatment, you can connect TcpO2 electrodes to our remote panels mounted inside the chamber. These panels are in turn connected to the TcpO2 measuring device located outside the chamber.

Each remote panel includes:

  • A calibration socket for the electrode.
  • A connection socket for the electrode.
  • A color code.
  • Cables to connect to the measuring device.

The kit also includes:

  • A pass-through for the chamber wall.
  • Extension cables.
